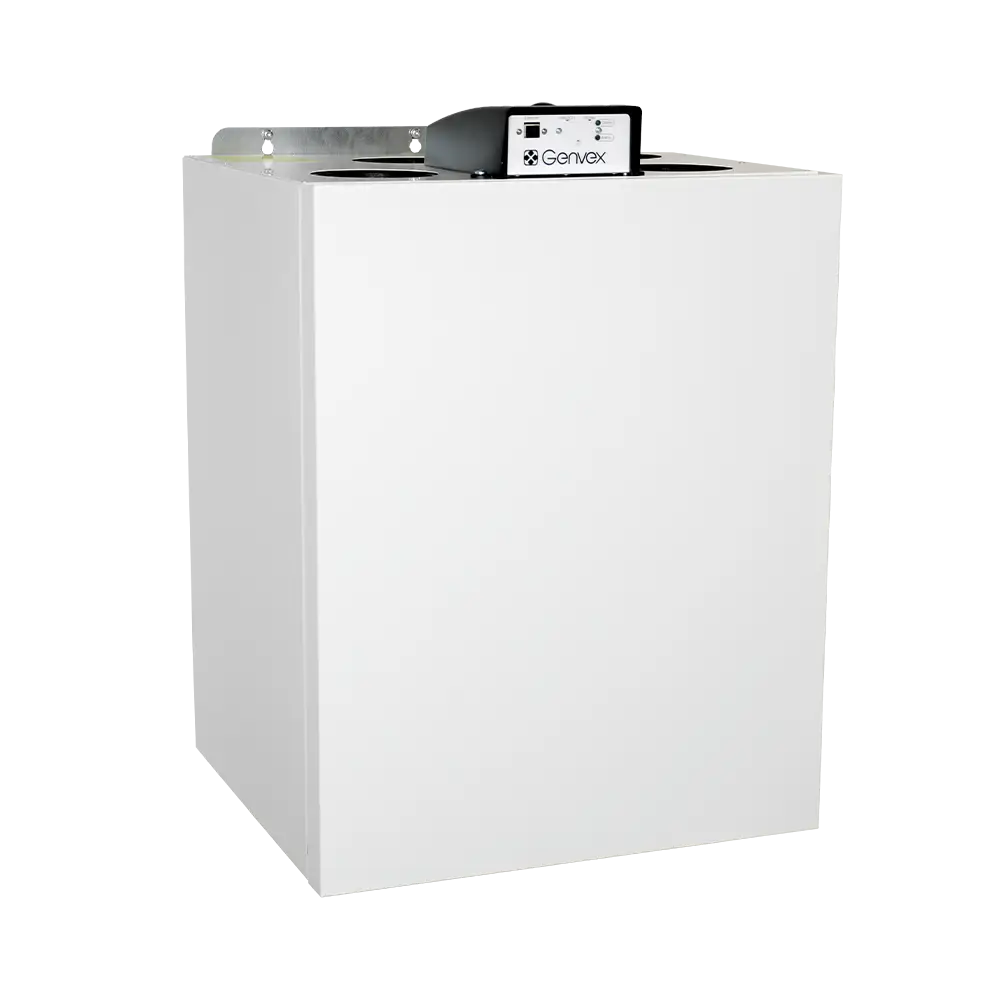

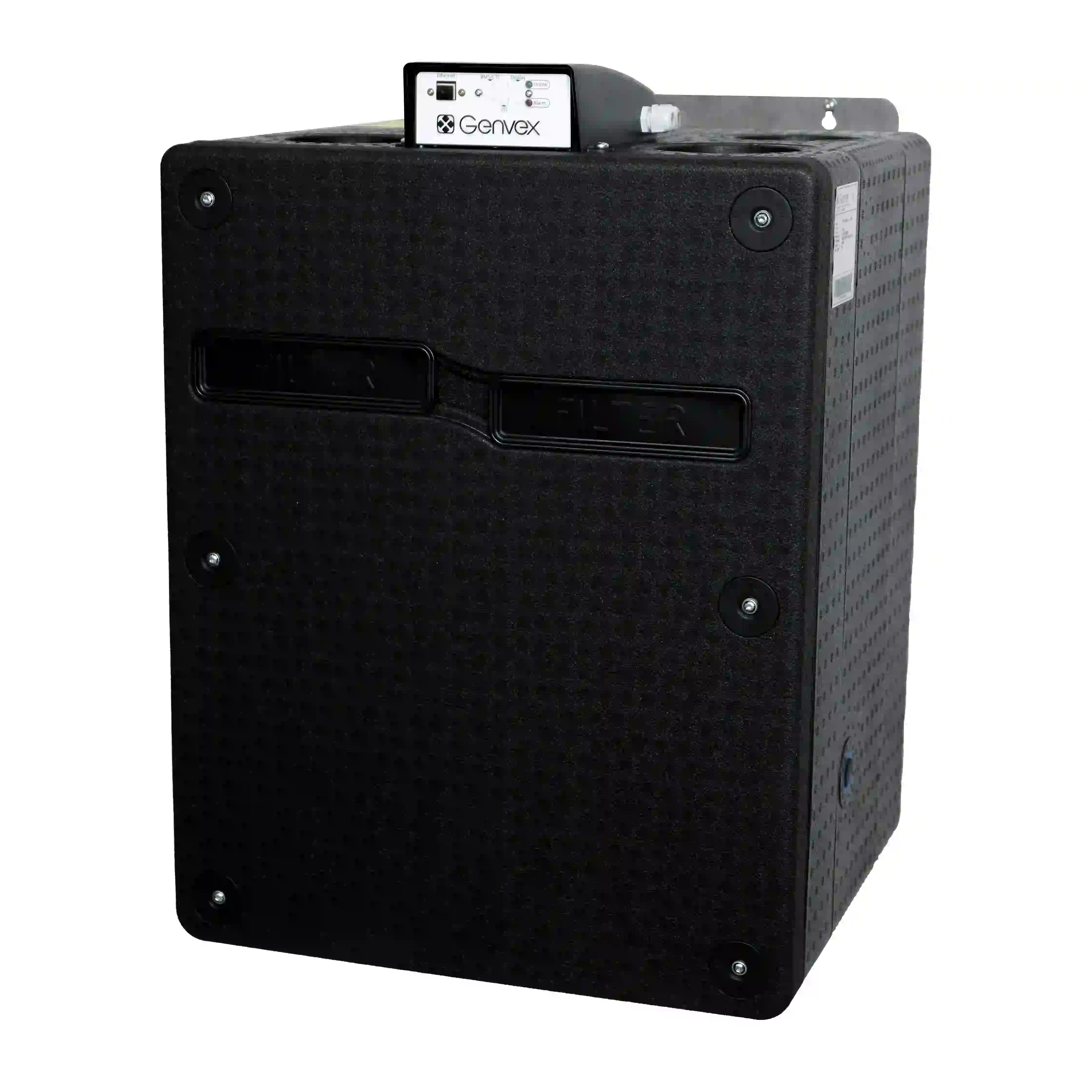

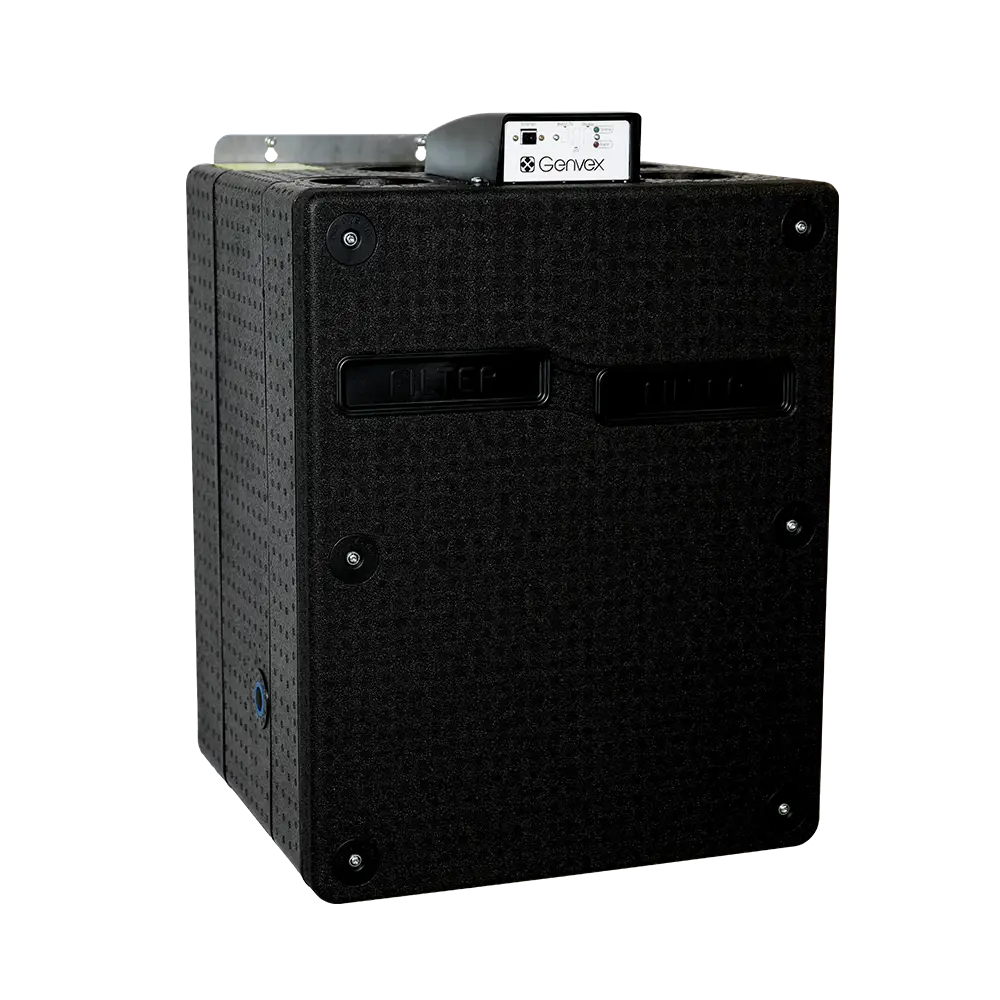

ECO 175 ventilation unit

The ECO 175 is a ventilation unit with heat recovery that offers highly flexible connection options and a compact design.

Despite its small size, the ECO 175 delivers performance comparable to systems with much larger space requirements. This is achieved through a high-efficiency counterflow heat exchanger that can recover up to 93% of the temperature and energy-efficient EC motor-equipped fans.

This model features an automatic bypass function, enabling passive cooling of your home during the summer by utilizing cooler outdoor air for ventilation without consuming electricity.

Applications of the ECO 175 ventilation unit

The ECO 175 is Genvex's newest generation of energy-efficient ventilation units for small homes and apartments. It features compact dimensions of only 560 x 770 x 500 mm (WxHxD), designed to fit a standard 60x60 cm closet. The unit is highly flexible, as it can be configured for left or right-hand installation as needed—allowing supply and extract air to be mounted on either side.

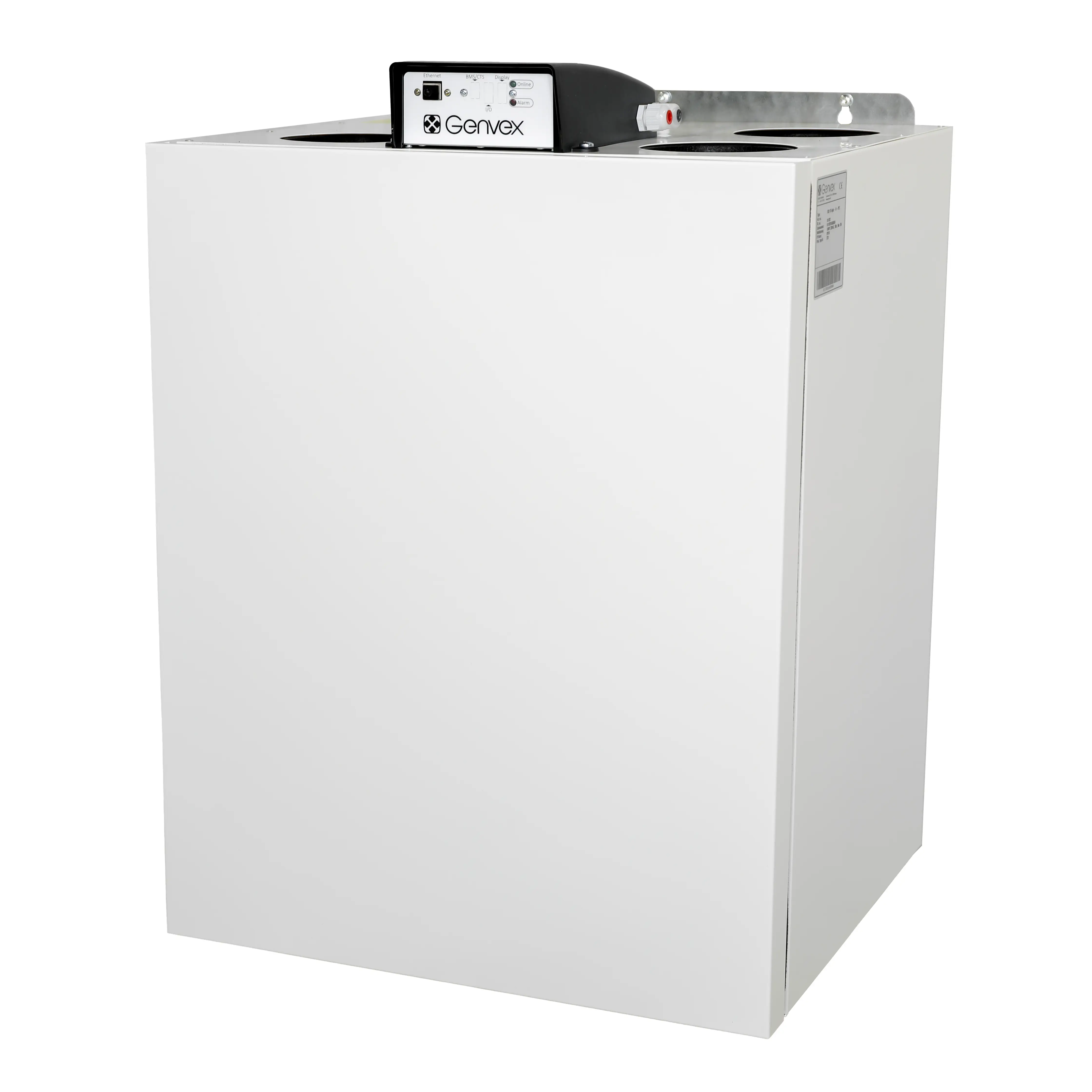

Weighing only 18 kg, the ECO 175 model without a steel cabinet significantly simplifies the installation process. For reduced noise levels, a white-painted steel cabinet can be added as an option.

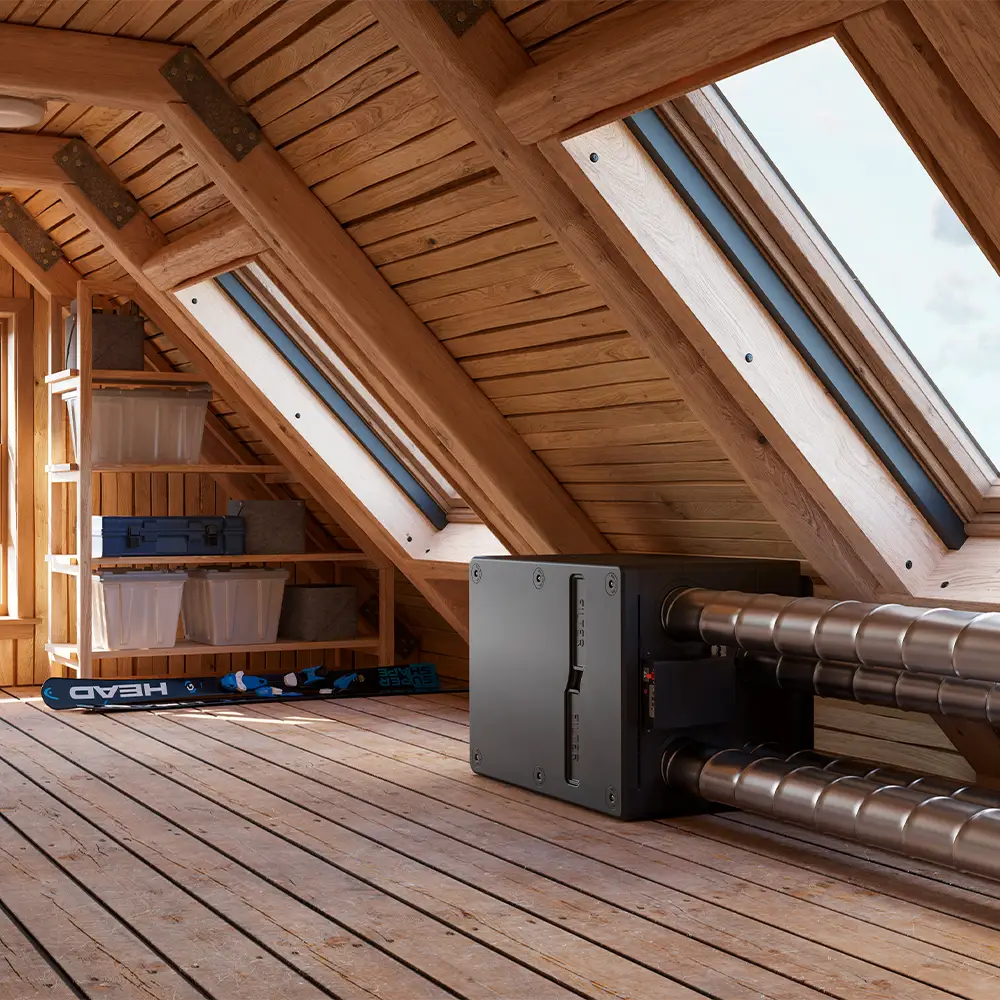

The unit can be installed either hanging on the wall or horizontally in e.g. an attic, providing added flexibility for installation.

The ventilation system comes with built-in internet connectivity as standard, enabling remote monitoring and app control. This means you can download the Genvex app from your usual app store and connect your ventilation unit for remote operation without additional costs.

Learn more about Genvex Connect here.

Benefits of the ECO 175

  • Compact size and weight with high performance and efficiency comparable to much larger systems
  • Options for both vertical and horizontal installation
  • Flexible connection options with left/right configuration
  • External connections via I/O module for easy integration, e.g., with a display
  • Comes with Optima 270 control system
  • Built-in internet connectivity for remote monitoring and app control
  • Passive comfort cooling with fully automatic 100% bypass function
  • Designed for easy servicing with accessible control boards and internal components

Accessories for the ECO 175

The ECO 175 can be equipped with either plastic, aluminum or an enthalpy heat exchanger. The enthalpy heat exchanger allows for both heat recovery and moisture recovery from the exhaust air.

This ensures your home doesn't dry out during winter or become too humid in summer. Additionally, the unit can be fitted with an electric preheater or reheater to adjust the temperature as needed.

Other available accessories include:

  • Genvex fire automation.
  • Genvex ventilation and district heating control.
  • Wireless CO2 sensors.
  • Basic or Touch control panels.

AIR VOLUME OF APPROX. 230 M³/H AT 100 PA

Heat recovery rate

Up to 93 %
